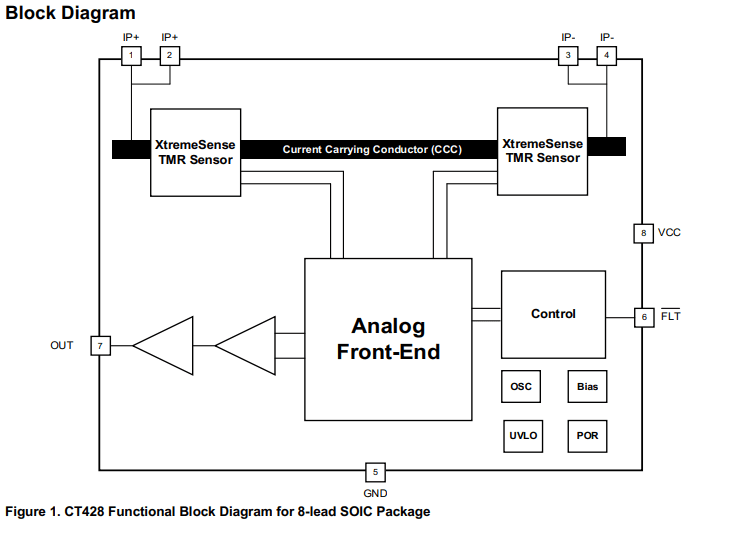

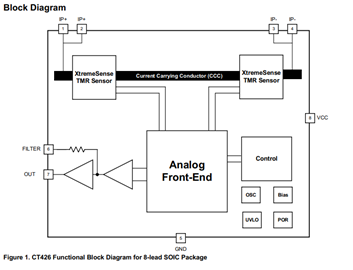

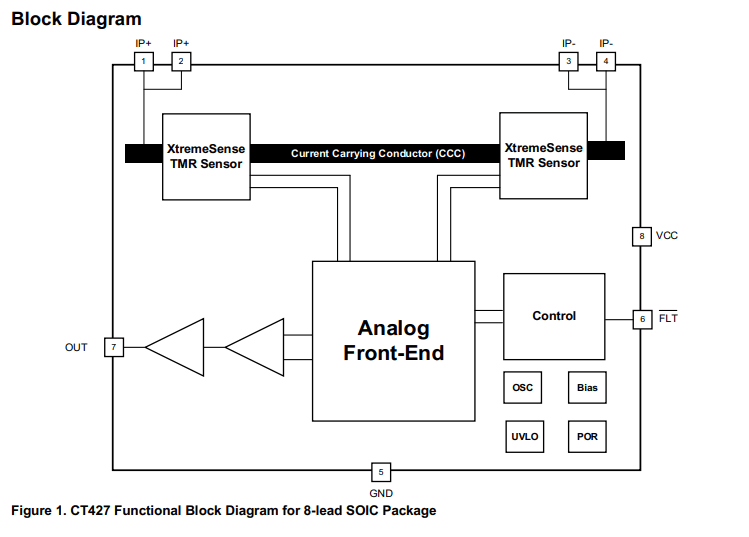

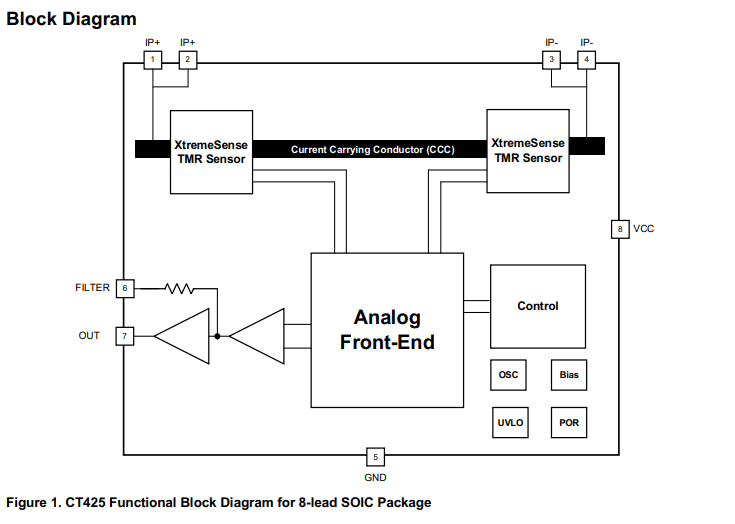

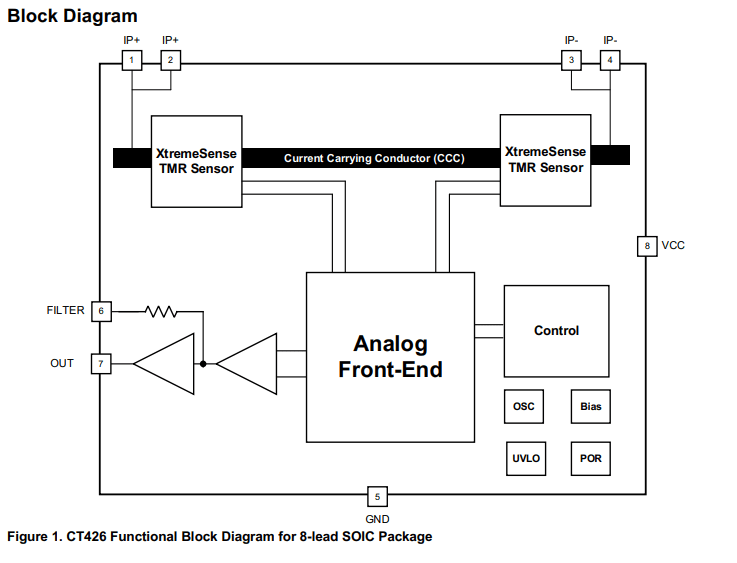

1 MHz, High Precision XtremeSense TMR Isolated Current Sensor in SOIC-8 Package

CT425, CT426, CT427, CT428

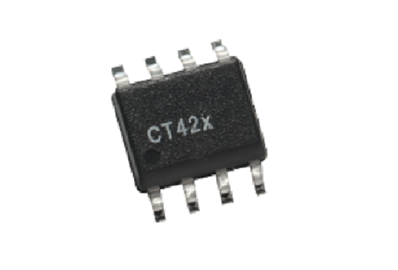

CT42x: 1Mhz, High Precision XtremeSense® TMR Isolated Current Sensor in SOIC-8 Package Product Image

CT425-8 ECAD Model
Download Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

The CT42x family is a high bandwidth, fast response and ultra-low noise integrated contact current sensors that use Allegro MicroSystems’ patented XtremeSense™ TMR technology to enable high accuracy current measurements for many consumer, enterprise, and industrial applications. It supports eight (8) current ranges where the integrated current carrying conductor (CCC) will handle up to 65 A of current and generates a current measurement as a linear analog output voltage. It achieves a total output error of less than ±1.0% full-scale (FS) over voltage and the full temperature range.

The CT42x family is offered in an industry standard 8-lead SOIC package that is “green” and RoHS compliant.

  • CT425 & CT428 (5.0 V version), CT426 & CT427 (3.3 V version)
  • Integrated 0.5 mΩ Conductor
  • Total Error Output: ±0.5% FS (typ.)
  • 300 ns Response Time, 1 MHz Bandwidth
  • Noise as Low as 9 mARMS
  • Immunity to Common Mode Field: -54 dB
  • Rated Isolation Voltage: >4 kVRMS
  • UL/IEC 62368-1 and UL1577 Certification
  • IEC 61000-4-5 Certified
  • AC or DC Current Range:
    • +20.0 ADC / ±20.0 APK
    • +30.0 ADC / ±30.0 APK
    • +50.0 ADC / ±50.0 APK
    • +65.0 ADC / ±65.0 APK
  • Pin #6 Functionality
    • CT427 & CT248: Over-Current Detection Output Pin
    • CT425 & CT426: Enhanced Filter to Lower Noise

The CT42x family is offered in an industry standard 8-lead SOIC package that is “green” and RoHS compliant.
