Allegro Current Sensor Evaluation Boards

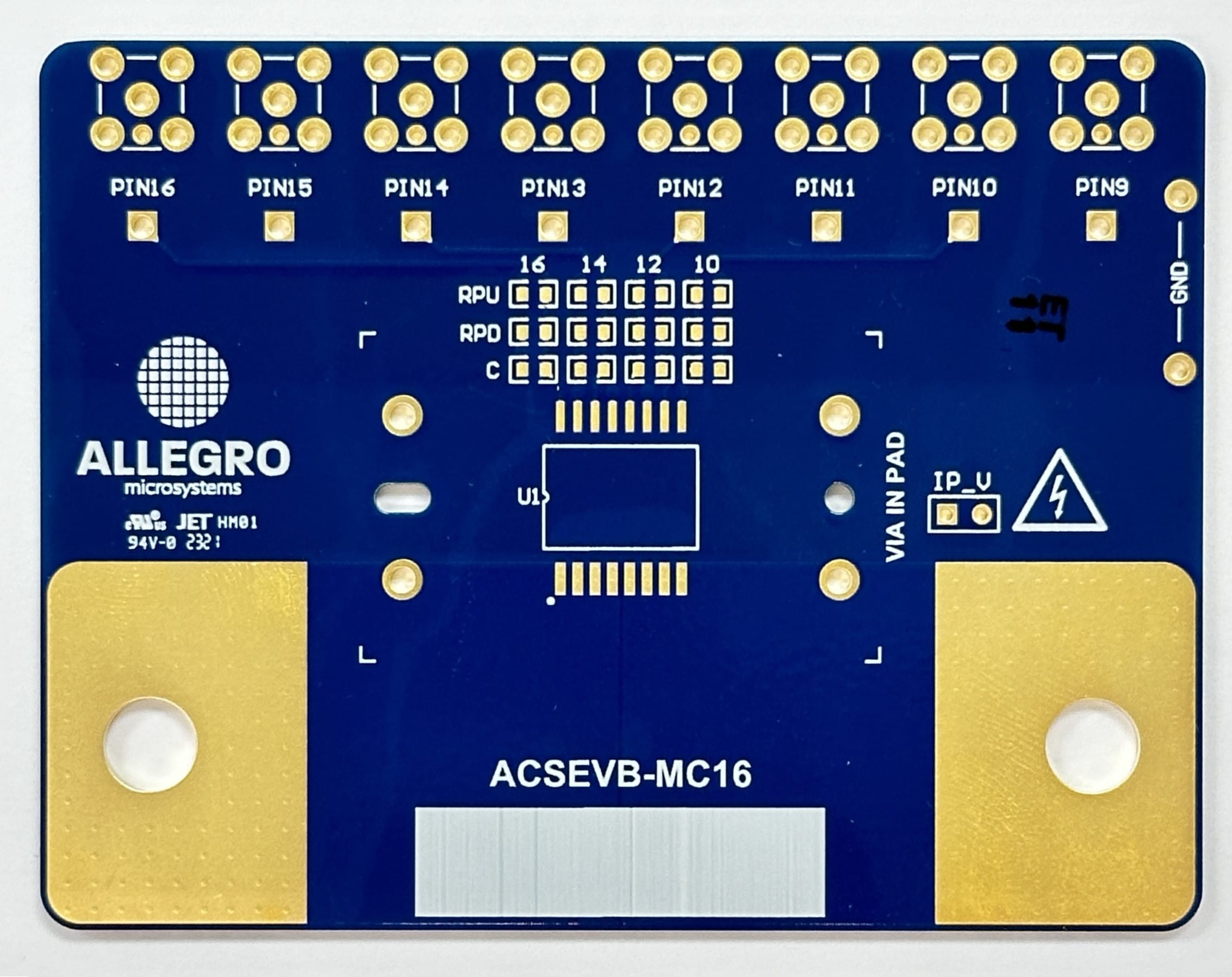

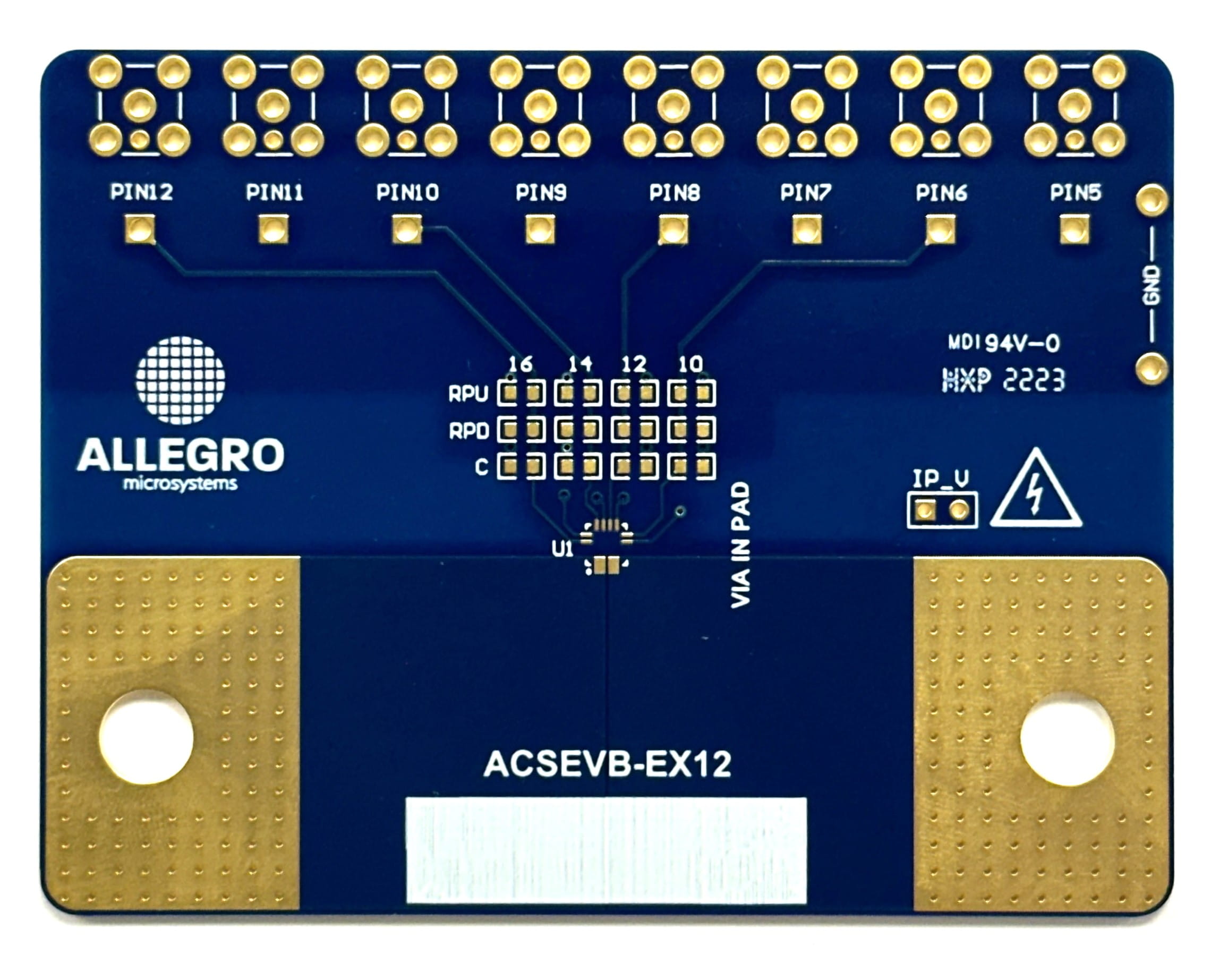

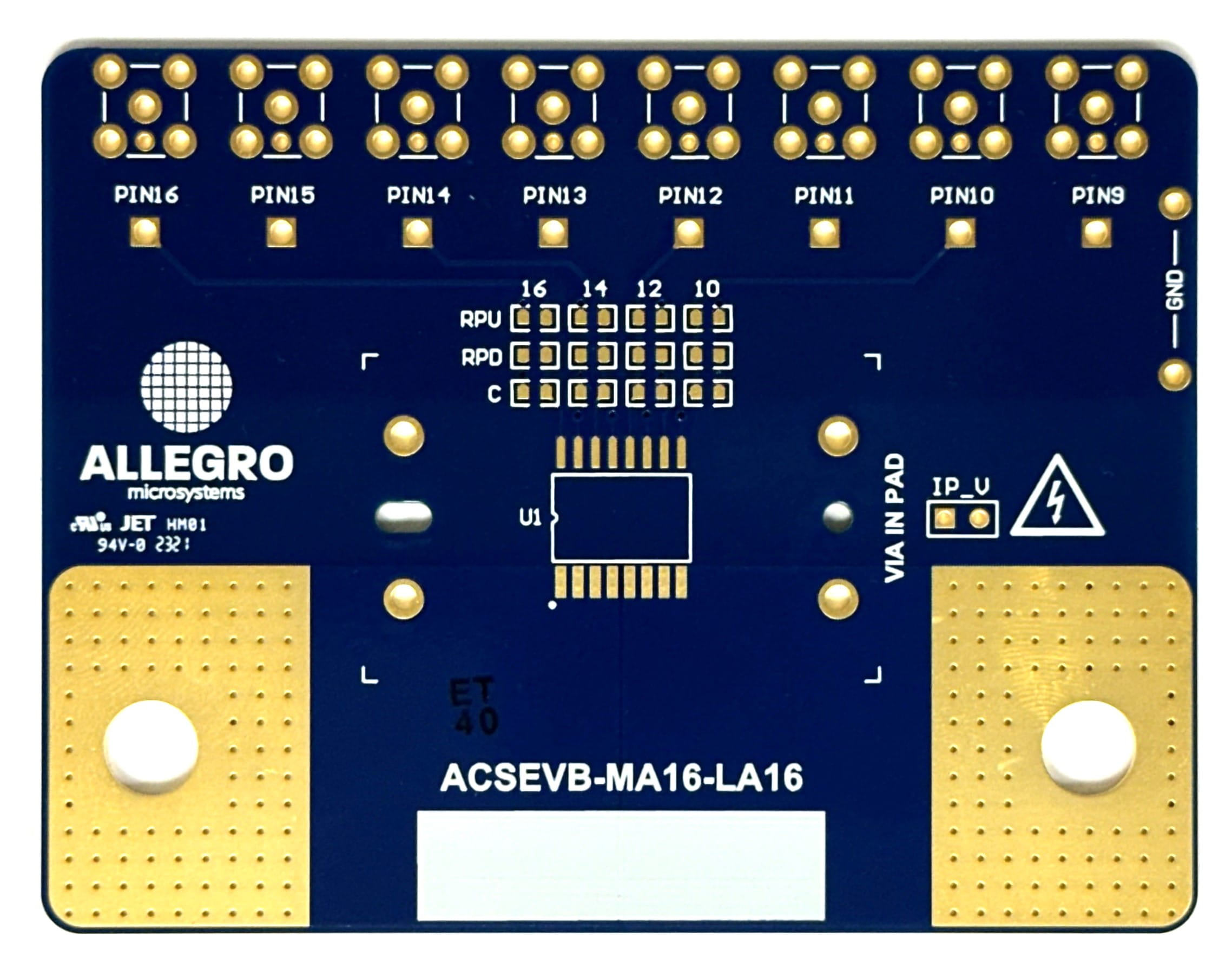

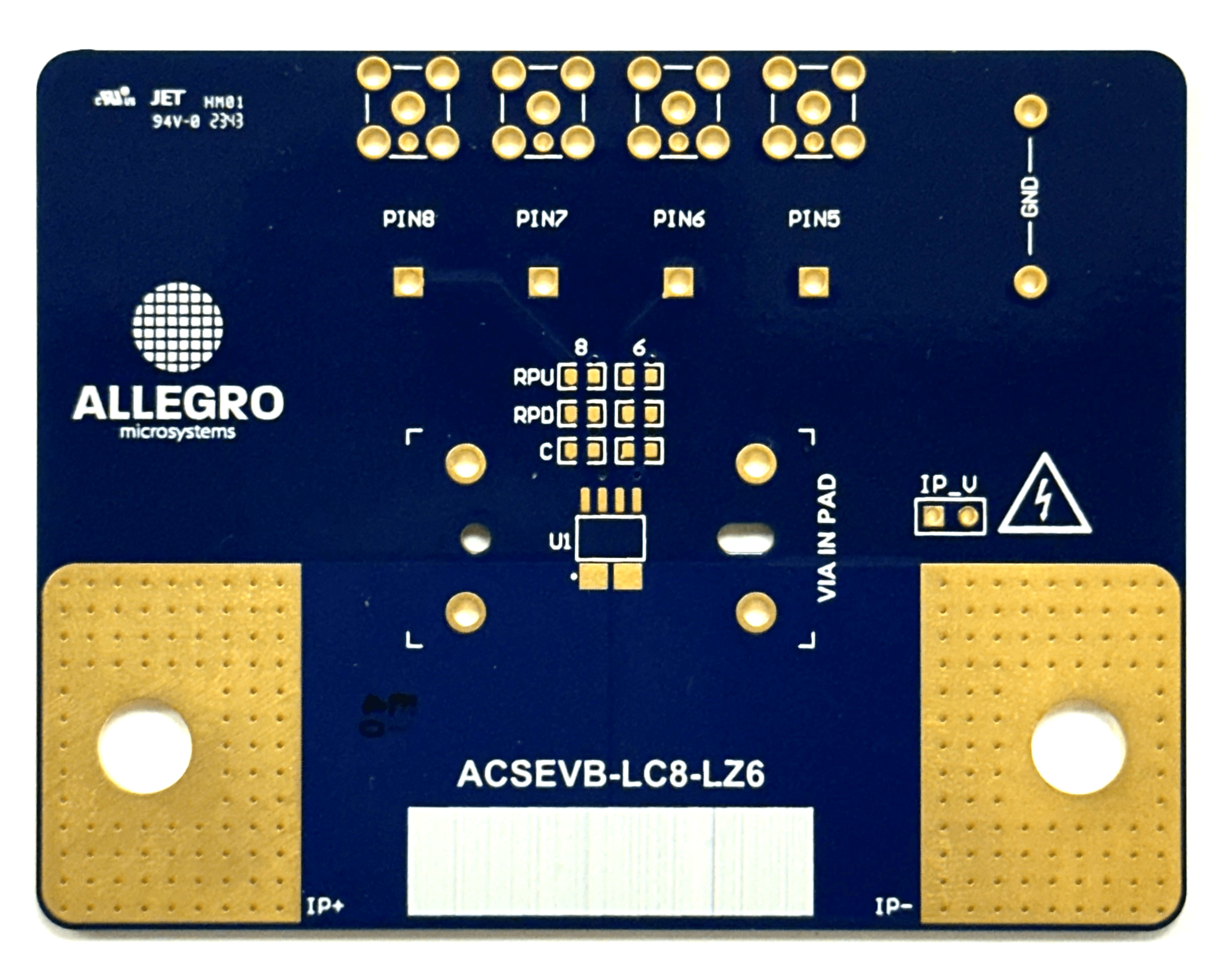

Allegro Current Sensor Evaluation Boards offer a convenient method for quickly evaluating Allegro Current Sensors in a lab environment without needing a custom circuit board. These evaluation board are intended for use with a user-populated Allegro Current Sensor IC.
Features
What is Included
Simplifying the Allegro Current Sensor evaluation process with straightforward and comprehensible board design, saving time and effort while remaining efficient
Test points allow convenient access to device pins allowing for quick measurement and validation without the need of complex test setups
Enhanced thermal performance and heat dissipation allowing precise and reliable measurements
6-layer PCB with 2 oz copper weight on all layers
Nonconductive filled Via-In-Pad used
High performance FR4 material
Flexible instrument connection
Standard Keystone test points, SMA/SMB connector or 2-pin headers options are provided
Sensor integrated current loop resistance can be measured directly on the evaluation board; voltage drop can be measured for approximating power loss in the package
Bare printed circuit board without populated components
NOTE: It is up to the user to assemble the board with the desired current sensor IC. This board does not come populated with an Allegro current sensor.
Recommended bill of materials (BOM) for all compatible current sensors can be found in the Bill of Materials section of the respective user guide
