Multi-Output Regulator with Buck Pre-Regulator, 5× LDO Outputs, Watchdog, and SPI

ARG81402

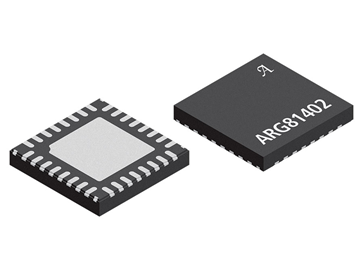

ARG81402 Product Image

ARG81402 ECAD Model
Download Datasheet
Navigate

Description

Top Features

Packaging

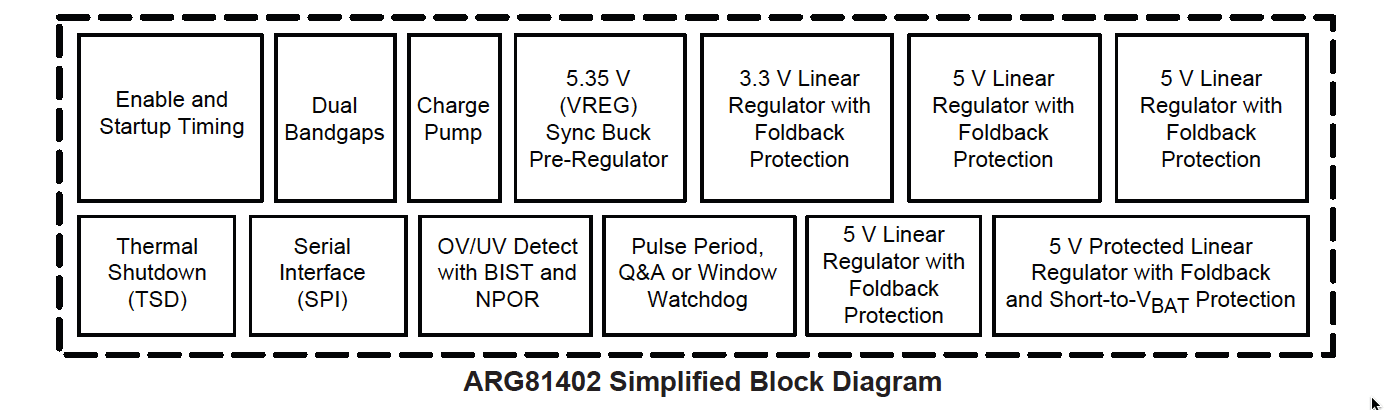

The ARG81402 is designed to provide power to loads such as microprocessors, sensors, and communication transceivers, and is ideal for both Automotive and Industrial applications.The device is in a small footprint 5x5mm package, and offers a high level of integration, including:

  • Synchronous buck 5.35V pre-regulator
  • Five LDO outputs
  • Configurable Watchdog: pulse period, window and Q&A watchdog timer
  • Dedicated pins for a power-on reset output (NPOR), a self-generated Safe State output, and a fault flag output to alert the microprocessor that a fault has occurred.

The ARG81402 is supplied in a low-profile 32-lead, 5 mm × 5 mm, 0.5 mm pitch QFN package (suffix “ET”) with exposed thermal pad and wettable flank to allow solder joint inspection.

ASIL Logo

ARG81402 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL D capability (pending assessment) for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.

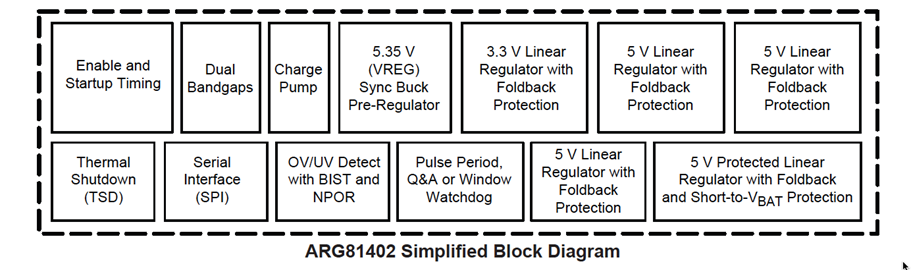

  • Control and diagnostic reporting through a serial peripheral interface (SPI)
  • Wide input voltage range (6 to 36 VIN operating range, 40 VIN maximum)
  • 2.2 MHz Synchronous buck 5.35V pre-regulator (VREG) for integration and efficiency
  • Five internal linear regulators with foldback short-circuit protection
    • 3.3V and 4x 5V outputs (one with short- to-battery protection for remote sensors)
  • OV and UV protection for all output rails provide the ability to monitor health of outputs
  • Pin-to-pin and pin-to-ground tolerant at every pin
  • Three configurable watchdogs with fail-safe features: pulse period, window, Q&A watchdog
  • Power-on reset signal (NPOR) indicating a fault on the 3.3V output, the optional 1.3V input monitor (for self-powered core voltage) and a watchdog failure
  • Safety signal (POE) can disable a separate function (e.g., Motor Driver) due to a Watchdog Failure

The ARG81402 is supplied in a low-profile 32-lead, 5 mm × 5 mm, 0.5 mm pitch QFN package (suffix “ET”) with exposed thermal pad and wettable flank to allow solder joint inspection.

ET Package Documentation
