Three Phase Sinusoidal Sensorless Fan Controller

A5932

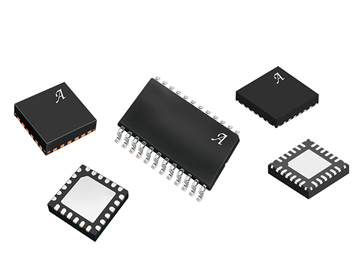

A5932 Product Image

A5932 ECAD Model
Download Datasheet
Navigate

Description

Top Features

Packaging

The A5932 is a three phase sensorless BLDC fan MOSFET gate driver that incorporates sensorless sinusoidal drive to minimize audible noise and vibration for high power fans.

A sinusoidal voltage profile is applied to the windings of the motor at startup to quietly and gradually ramp up the motor to desired speed.

The motor speed is controlled by applying a duty cycle command to the SPD input. The speed input is allowed to operate over a wide frequency range.

  • 180° sinusoidal drive - low audible noise and vibration
  • Motor position using Allegro's sensorless algorithm - eliminates external Hall sensors
  • 5V to 50V operating voltage range - wide operating supply voltage range for variety of applications

24-lead TSSOP with exposed thermal pad (LP package)

LP Package Documentation



24-contact QFN with exposed thermal pad 4 mm x 4 mm x 0.75 mm (ES package).

ES Package Documentation

× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Brochure Guide Technical Article
Documents Found: 32
Document Type Document Name
Brochure
xEV Thermal Management System Brochure
Guide
A5932GES Evaluation Board User Guide
Technical Article
Overcoming Battery Cooling Challenges to Enable Safe and Reliable Electric Two-Wheelers
