Three Phase Sensorless Fan Drivers

A5931, A5931-3

A5931 Product Image

A5931 ECAD Model
Download Datasheet
Navigate

Description

Top Features

Packaging

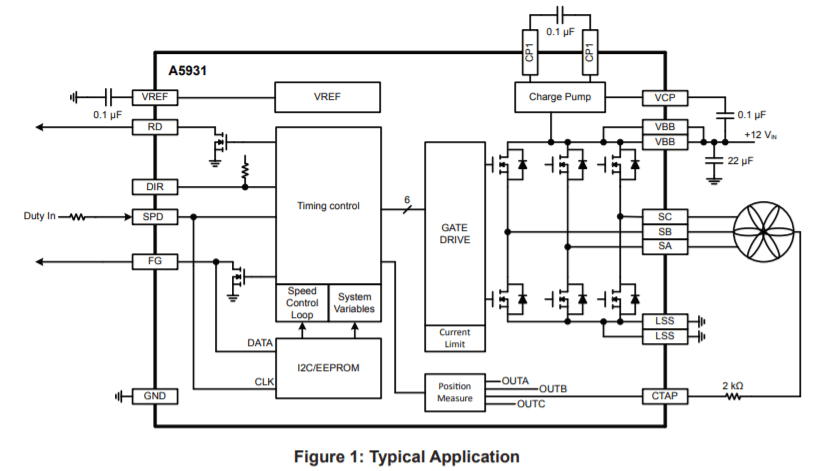

The A5931 is a three phase sensorless BLDC fan driver IC that incorporates sinusoidal drive to minimize audible noise and vibration.

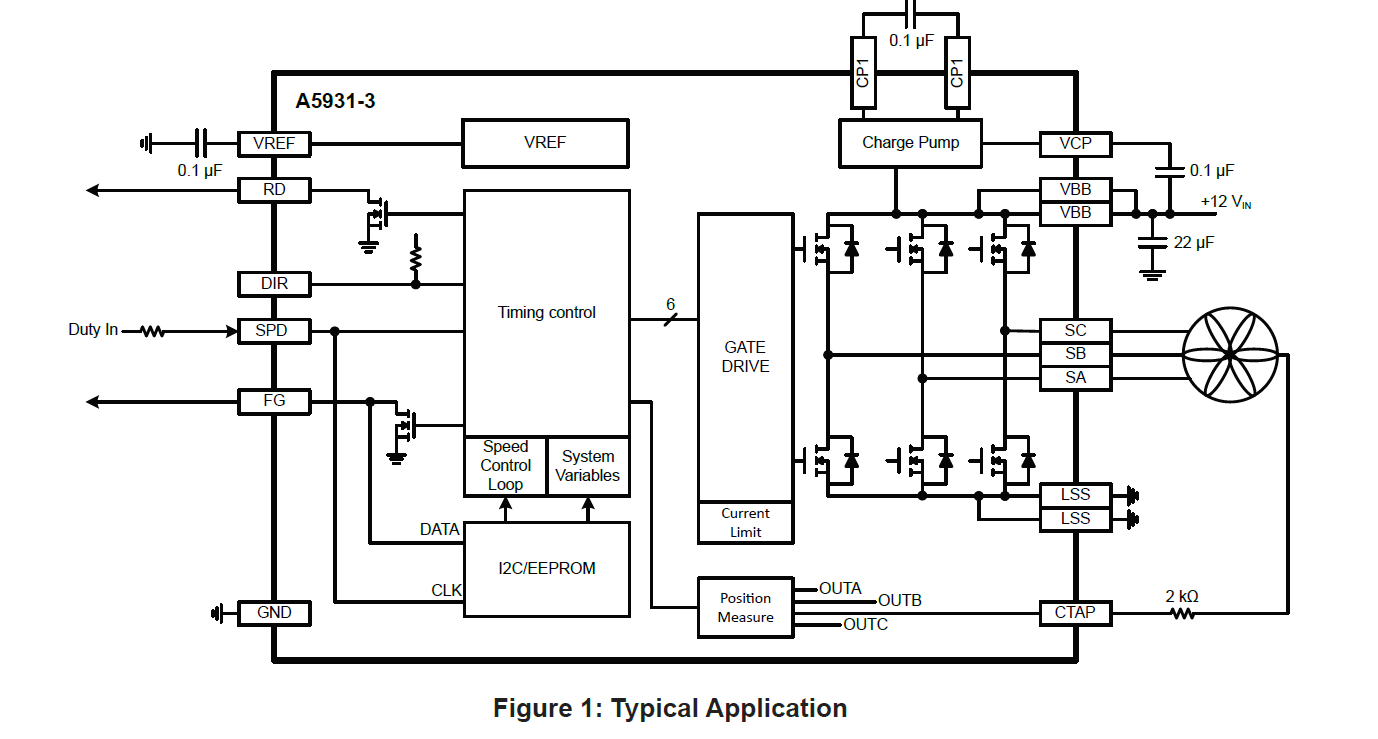

The A5931-3 is the latest in the family with a new feature that allows user to adjust deceleration speed from Force Open Loop to Close Loop.

A flexible closed-loop speed control system is integrated into the IC. This eliminates the requirement for a microprocessor-based system and minimizes programming requirements.

The A5931 devices are available in both commercial and automotive grade.

  • 180° sinusoidal drive - Low audible noise and vibration
  • Motor position using Allegro's sensorless algorithm - Eliminates external Hall sensors
  • Closed-loop speed control
  • Speed curve configuration via EEPROM
  • Lock detection
  • Soft start
  • Standby mode
  • Shorted load protection

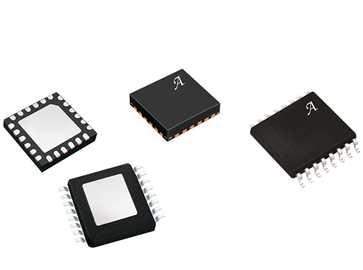

16-lead TSSOP with exposed thermal pad (LP package)

LP Package Documentation



24-contact QFN with exposed thermal pad 4 mm x 4 mm x 0.75 mm (ES package)

ES Package Documentation
